DF-82
HEE

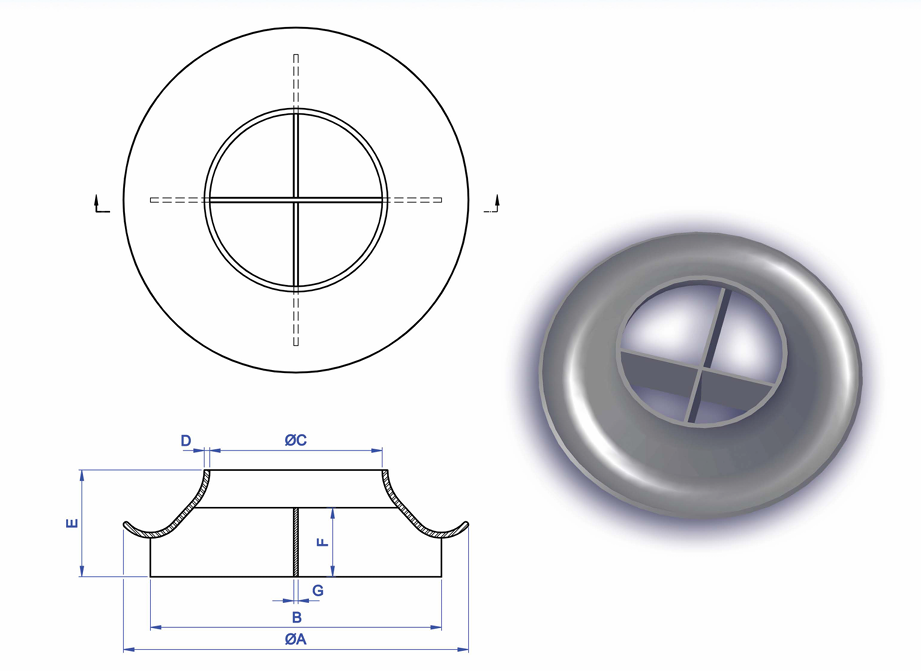

Stahlsaug Bellmouth
| Modell Nr. | Φa | B | Φc | D | E | F | G | Wt. (lbs) |
| DF-82-6 | 20 ' | 16 7/8 ' | 6 1/16 ' | 5/16 ' | 4 13/16 ' | 2 1/2 ' | 1/4 ' | 34 |
| DF-82-8 | 20 ' | 16 7/8 ' | 8 1/16 ' | 5/16 ' | 5 3/8 ' | 3 ' | 1/4 ' | 34 |
| DF-82-10 | 20 ' | 16 7/8 ' | 10 ' | 5/16 ' | 6 3/16 ' | 4 ' | 1/4 ' | 34 |
Stahlsaug Bellmouth
| Modell Nr. | Φa | B | Φc | D | E | F | G | Wt. (lbs) |
| DF-82-6 | 20 ' | 16 7/8 ' | 6 1/16 ' | 5/16 ' | 4 13/16 ' | 2 1/2 ' | 1/4 ' | 34 |
| DF-82-8 | 20 ' | 16 7/8 ' | 8 1/16 ' | 5/16 ' | 5 3/8 ' | 3 ' | 1/4 ' | 34 |
| DF-82-10 | 20 ' | 16 7/8 ' | 10 ' | 5/16 ' | 6 3/16 ' | 4 ' | 1/4 ' | 34 |
